Why some F-35 canopies look gold while others appear transparent
May 3, 2026

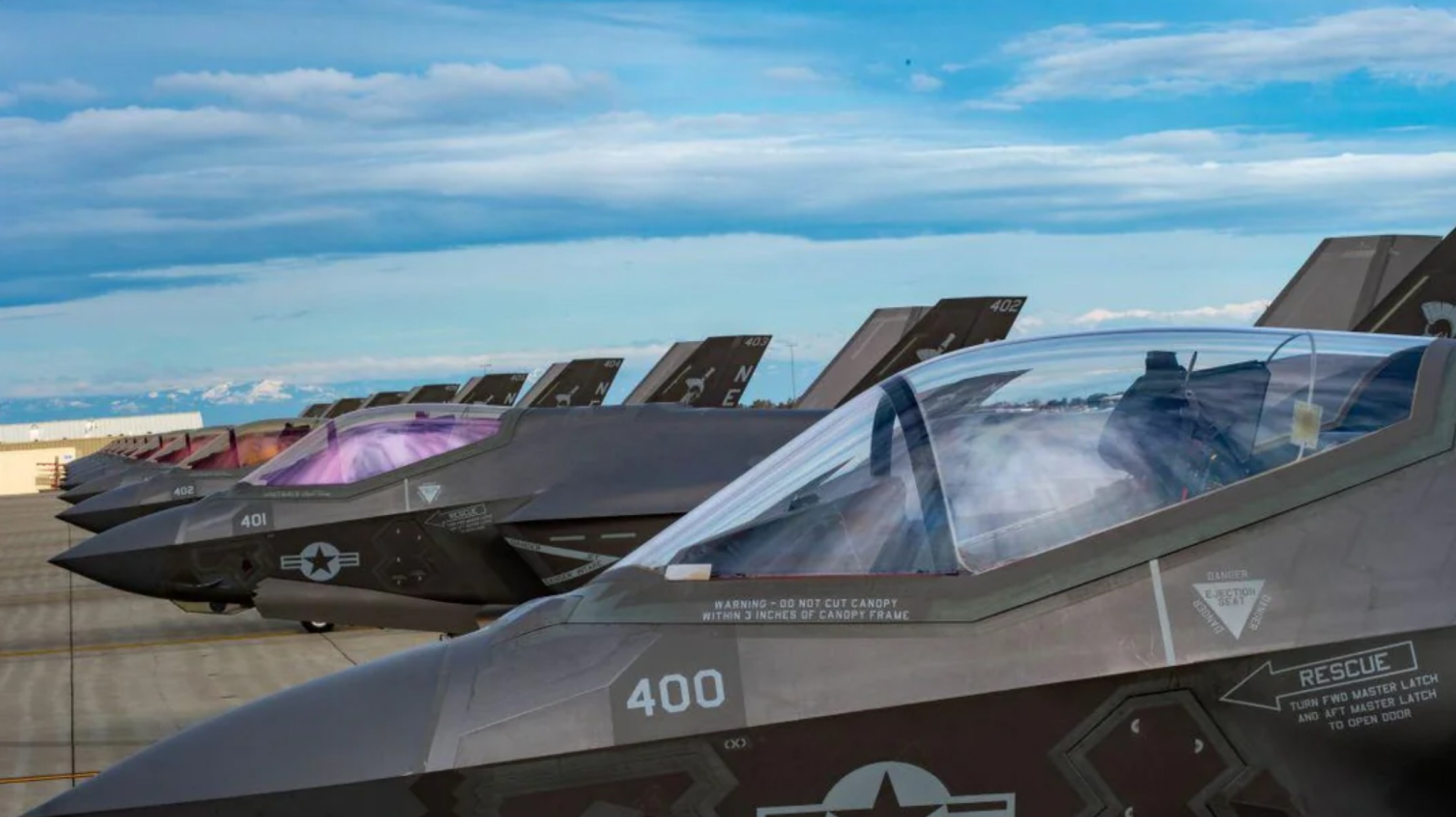

Have you ever noticed the tinted canopies of Lockheed Martin F-35 jets? Depending on the light, they can appear gold, magenta or almost transparent.
It’s not just a trick of the light. The F-35’s canopy is coated with multiple ultra-thin conductive layers designed to manage electromagnetic signals, reduce glare and support the aircraft’s stealth profile.
F-35 canopy coatings: The advanced materials behind the tinted finish
The canopy of an F-35 stealth fighter is primarily made from a polycarbonate- or acrylic-based composite, with multiple layers of conductive materials. Moreover, these advanced optical thin-film coatings combine electromagnetic interference (EMI) shielding and defogging while enhancing visual clarity.
The specialised conductive layer prevents radar waves from entering the cockpit, helping shield sensitive avionics from electromagnetic interference. The low-observable material minimises radar cross-section and creates a shielding effect against adversary attacks.
The conductive layer helps attenuate and scatter radar energy, reducing penetration into the cockpit and contributing to the aircraft’s low observable profile.
When electric current is applied, conductive heating elements within the coating prevent ice and fog buildup, ensuring visibility and optical clarity. Canopy coatings are essential during adverse conditions, particularly on highly agile jets in combat sorties. External coatings dissipate static charge build-up resulting from high-speed flights.
In addition to the polymeric base layers, materials such as indium tin oxide and aluminium-doped zinc oxide are commonly used for coatings. Thin layers of gold or silver can also be used to enhance electromagnetic shielding and durability.
How F-35 canopy coatings are formulated and applied
Coating materials are formulated based on aircraft mission requirements and applied using various techniques. Lamination Coating, Physical Vapor Deposition, and Magnetron Sputtering are some of the most sophisticated methods for conductive coating.
With its application at the molecular level, the oxide material deposition enables a thin and malleable layer onto the canopy surface. Moreover, tint formulation is often part of the customer’s baseline, requiring specific stealth capabilities.
National customers may specify alternate pigments to satisfy local visibility and environmental requirements.
For example, F-35 canopies for Japan Air Self-Defense Force (JASD) aircraft possess a different external finish with a dissimilar visual tint under light, serving environmental and safety requirements. These aircraft have a gold and bronze tint compared with most US military F-35s that show a transparent or bluish tint.
How F-35 canopy coatings support stealth and protect onboard systems
The canopy design is essential for the safety, reliability, and survivability of the F-35. The supersonic marvel has three variants, designed for the operational challenges of different services. The F-35A for conventional takeoff and landing, the F-35B for short takeoff and vertical landing capabilities, and the F-35C enabling carrier-based operations.
All variants are equipped with state-of-the-art avionics systems, primarily designed by L3Harris and Honeywell Aerospace. From cockpit communication systems and electronic warfare technology to pneumatic carriage and release racks, the use of advanced components is essential for air dominance.
Efficient materials used on the F-35 canopy coatings support the aircraft’s low observable profile while securing critical equipment. Moreover, strong UV stabilisers achieved through various tint formulations enable the aircraft to withstand harsh maritime climates.
While variations in top coats do not change an aircraft’s combat capability, they reflect national specifications, standards, and maintenance cycles.

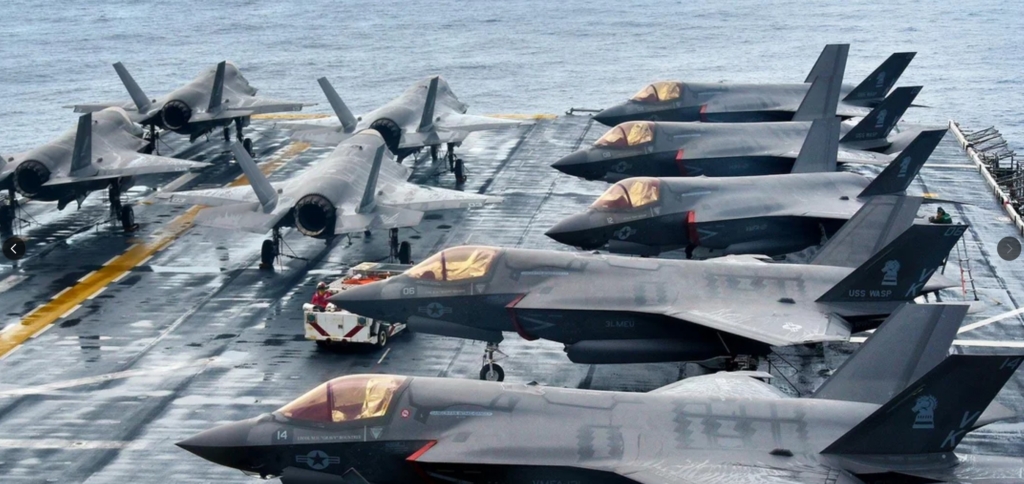

Featured Image: US Navy
